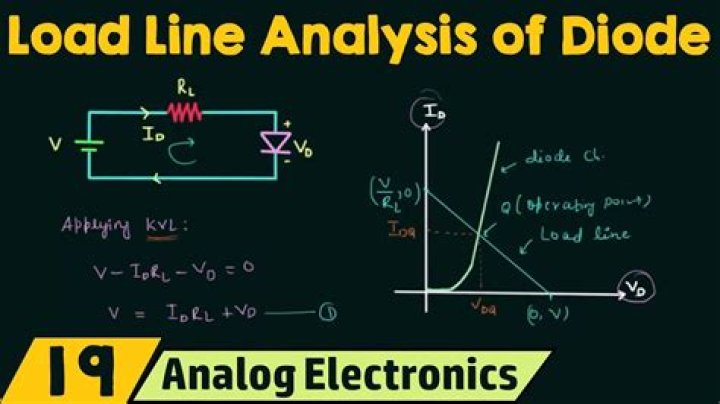

DC and AC load lines The DC load line is the load line of the DC equivalent circuit, defined by reducing the reactive components to zero (replacing capacitors by open circuits and inductors by short circuits). It is used to determine the correct DC operating point, often called the Q point. Hereof, what is DC load line explain with necessary diagram?
Definition: The DC (Direct Current) load line is a graph that has all possible volumes of output current (Ic) and output voltage (VCE) for a given amplifier. In the case of the amplifier, it has two inputs they are AC input and DC input. If we analyze the circuit for DC input then it is called a DC analysis.
Subsequently, question is, what is the Q point of a diode? Q point or the operating point of a device, also known as a bias point, or quiescent point is the steady-state DC voltage or current at a specified terminal of an active device such as a diode or transistor with no input signal applied.
Consequently, what is the use of DC load line?
The DC load line is the load line of the DC equivalent circuit, defined by reducing the reactive components to zero (replacing capacitors by open circuits and inductors by short circuits). It is used to determine the correct DC operating point, often called the Q point.
What is the DC operating point?
The DC operating point (also known as bias point, quiescent point, or Q-point) is the DC steady-state operating condition of a transistor, (with no AC input signal applied), determined by. and. of the input port, and. and. of the output port.
Related Question Answers
Why are coupling capacitors used?
In analog circuits, a coupling capacitor is used to connect two circuits such that only the AC signal from the first circuit can pass through to the next while DC is blocked. This technique helps to isolate the DC bias settings of the two coupled circuits. What is meant by Zener breakdown?
The Zener breakdown can be defined as the flow of electrons across the p kind material barrier of the valence band to the evenly filled n-type material conduction band. What is difference between AC and DC load line?
SUMMARY: DC Load Line: For CE transistors, it is straight line which joins VCE = VCC on the voltage axis to the point VCC/RC on the current axis. AC Load Line: It is straight line through the quiescent operating point having slope corresponding to AC load resistance Rac = RC | | RL. What is Q point in transistors?
The operating point of a device, also known as a bias point, quiescent point or Q-point, is the steady-state DC voltage or current at a specified terminal of an active device such as a transistor with no input signal applied. If a transistor's junction temperature is allowed to increase, thermal runaway may occur. What is load and line?
In the electrical trades, the terms "line" and "load" are shorthand words that refer to the wires that deliver power from the source to a device (line), vs. those that carry power onward to other devices further along the circuit (load). What is Q point in amplifier?
The operating point of a device, also known as a bias point, quiescent point or Q-point, is the steady-state DC voltage or current at a specified terminal of an active device such as a transistor with no input signal applied. If a transistor's junction temperature is allowed to increase, thermal runaway may occur. What is bias point?
The operating point of a device, also known as bias point, quiescent point, or Q-point, is the DC voltage or current at a specified terminal of an active device (a transistor or vacuum tube) with no input signal applied. What happens when diode is connected to AC source?
A diode is a device the allows current to flow only in one direction. So the output will be a half wave, or the positive or negative half of the ac wave. If you send the ac through the anode of the diode, then the output will be the positive half of the wave. when we connect a diode to an AC source . What is Load Line and Q point?
DC load line is the locus of all possible operating point at which BJT remains in active region. The operating point or the Quiescent point or Q-point is the point of intersectionof output characteristic (viz. Output current and output voltage) and DC loadline, at a given value of base current. What is meant by Q Point?
Q-Point. The operating point of a device, also known as a bias point, quiescent point or Q-point, is the steady-state DC voltage or current at a specified terminal of an active device such as a transistor with no input signal applied. What is load line of a transistor?
Load line is locus of operating point of the transistor. It is graph plotted between Ic and Vce for any configuration. It helps you to decide respective values of collector current and collector to emitter voltage to operate transistor in any particular mode or region. What is the need of load line?
Load line is locus of operating point of the transistor. It is graph plotted between Ic and Vce for any configuration. It helps you to decide respective values of collector current and collector to emitter voltage to operate transistor in any particular mode or region.
